Ahead of the Curve

The new 5000 series from Q Acoustics is a range of stereo and home cinema loudspeakers that will recalibrate your perceptions of how a speaker can look and sound. By embodying genuine and significant advancement in driver design, the game-changing C3 Continuous Curved Cone™ mid/bass driver elevates the 5000 series beyond any nominal rival. By incorporating the innovative cabinet technology first deployed in the company’s flagship Concept range, the 5000 series is as uncompromised on the inside as it is sophisticated and contemporary on the outside.

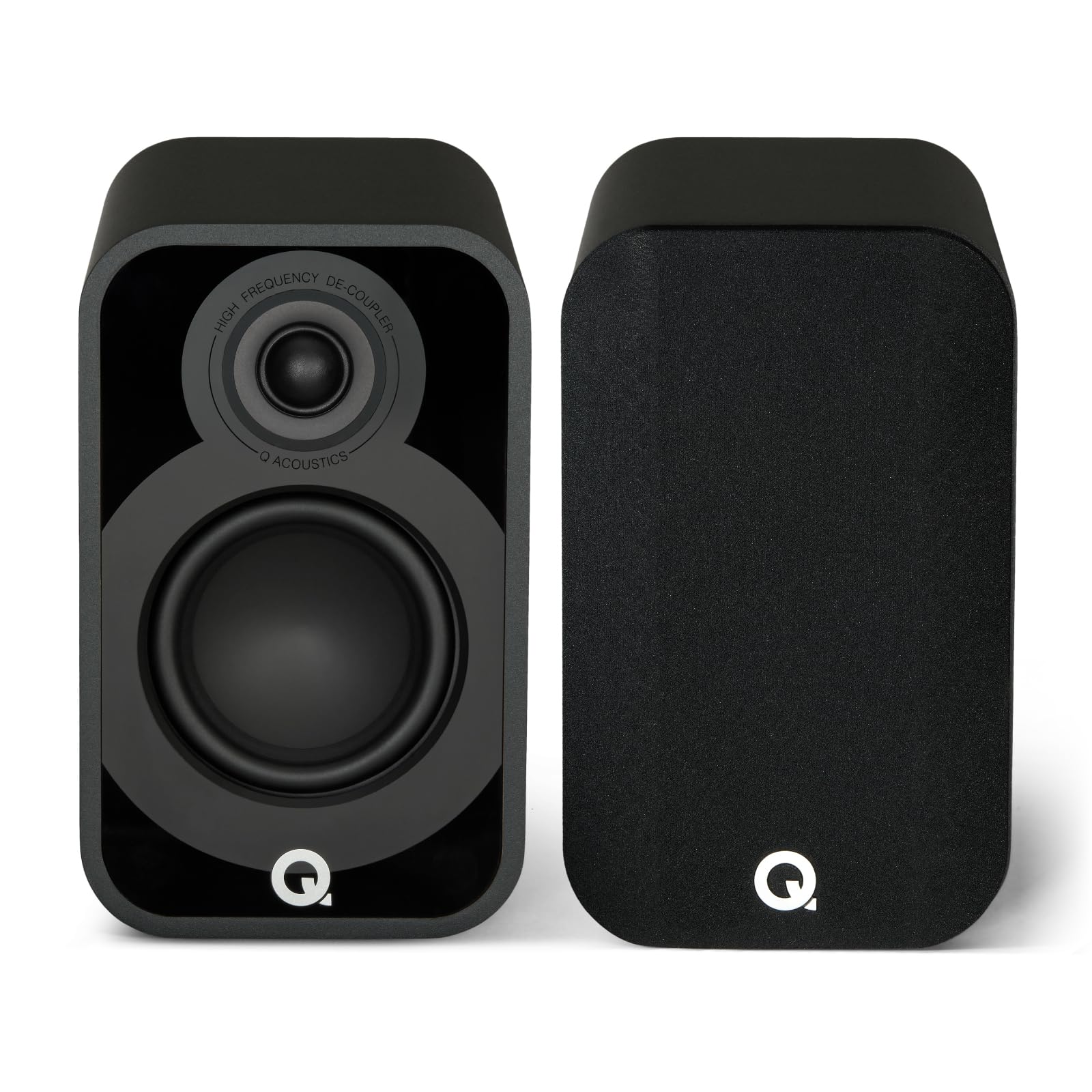

Black Q Acoustics 5010 bookshelf speaker pair, front view with one grille removed

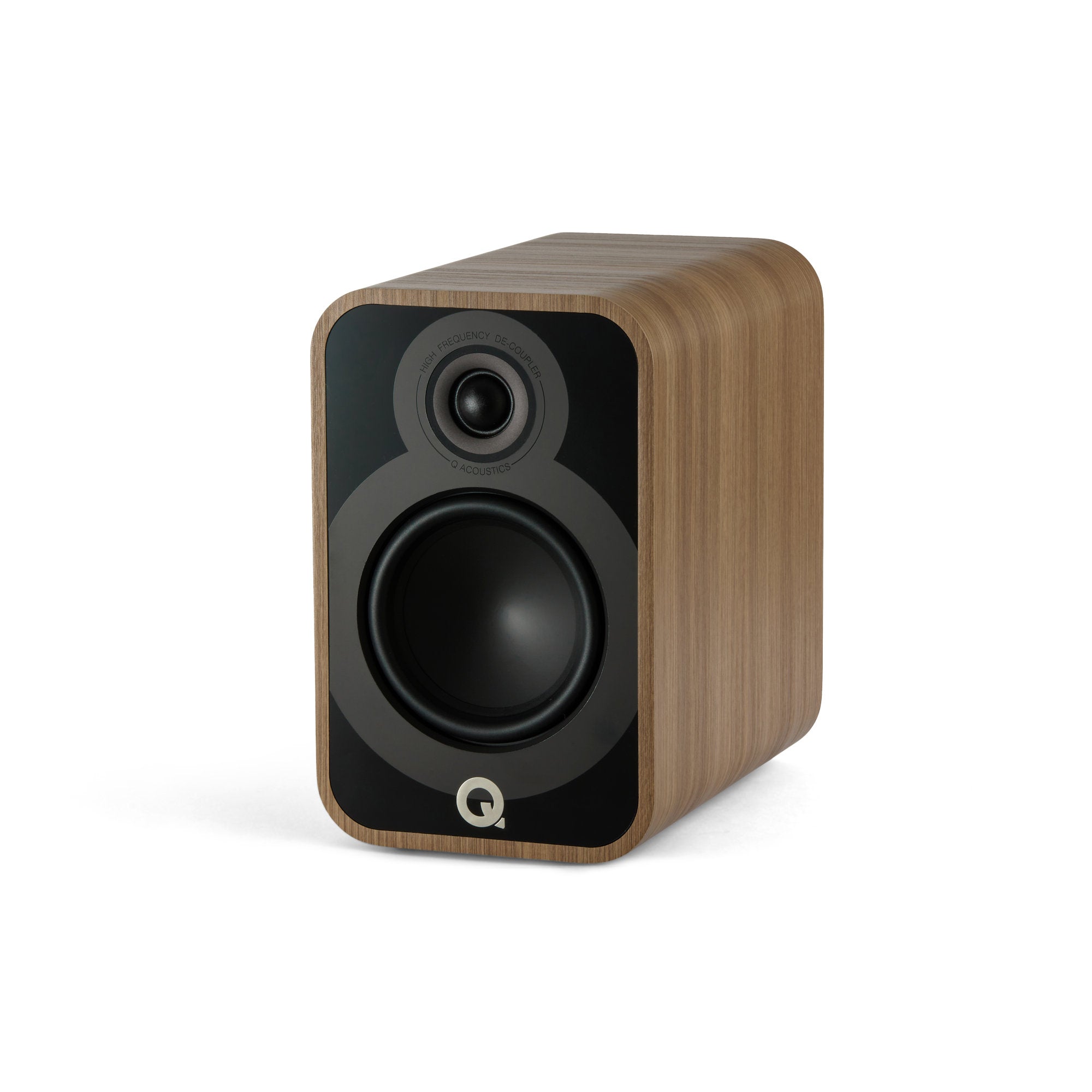

Dark wood-finish Q Acoustics 5020 bookshelf speaker at an angle with black baffle and exposed drivers

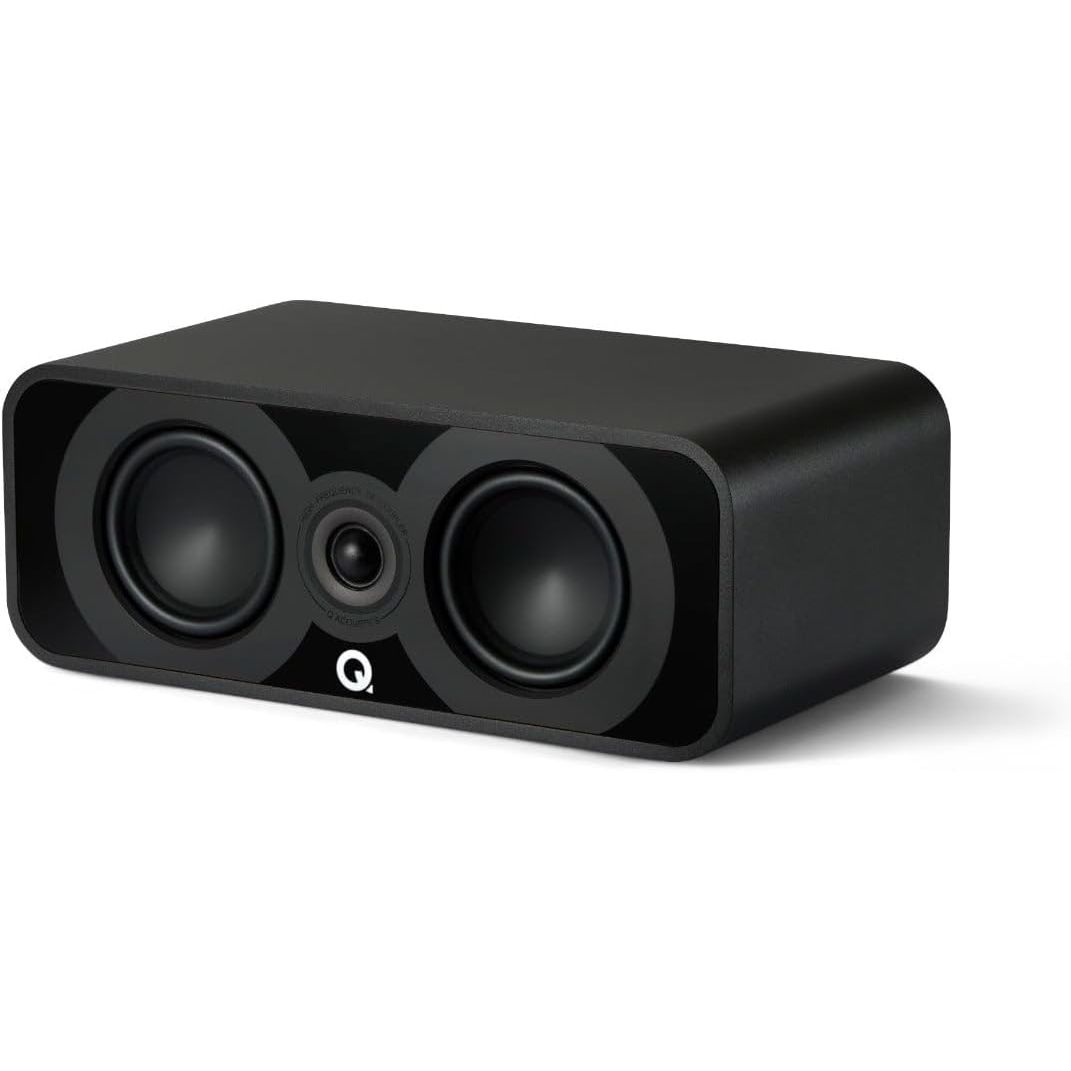

Black Q Acoustics 5090 centre speaker at an angle with two woofers and central tweeter exposed
Wood-finish Q Acoustics 5000 series speaker system with floorstanding, bookshelf and centre speakers beside tall windows

Introducing the 5000 family

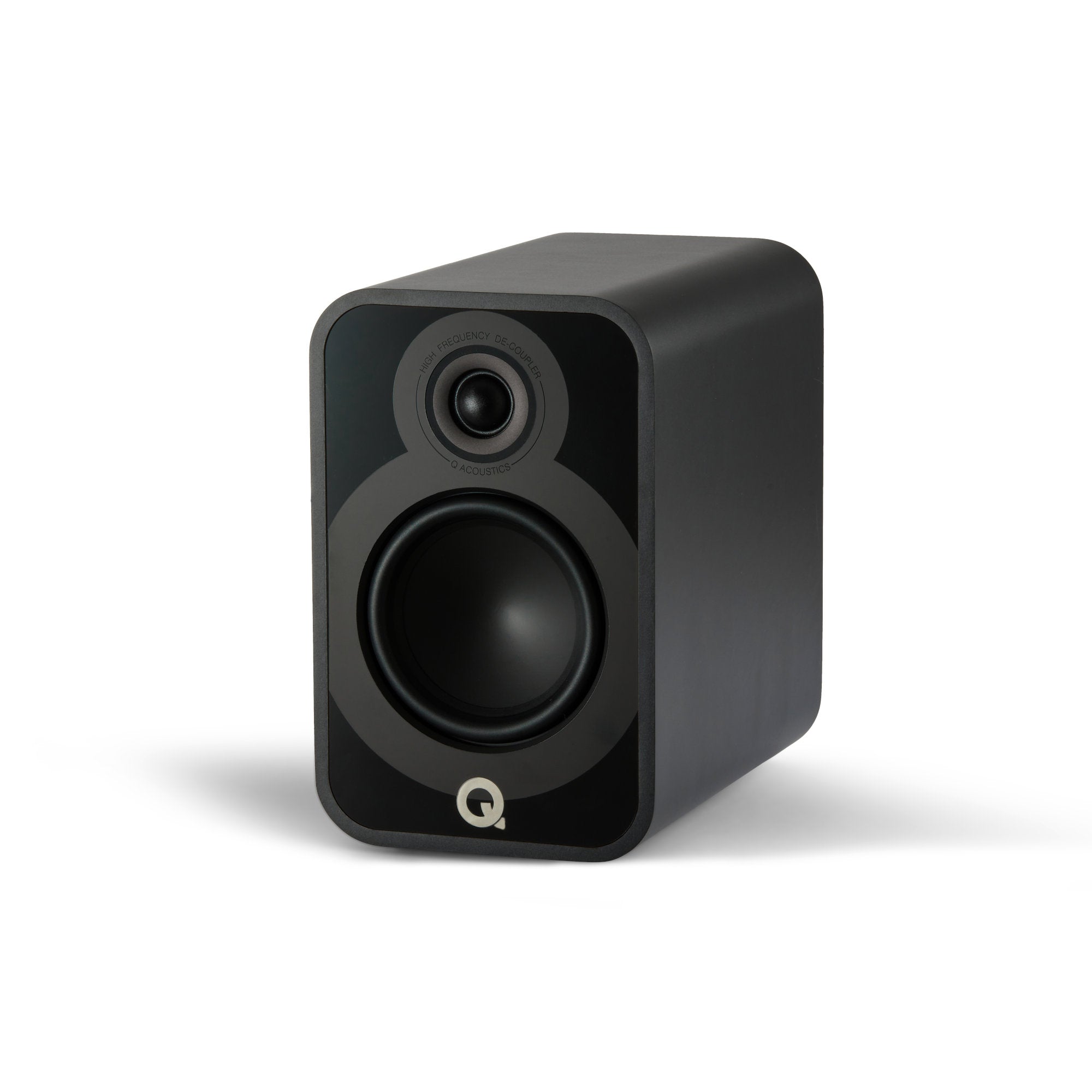

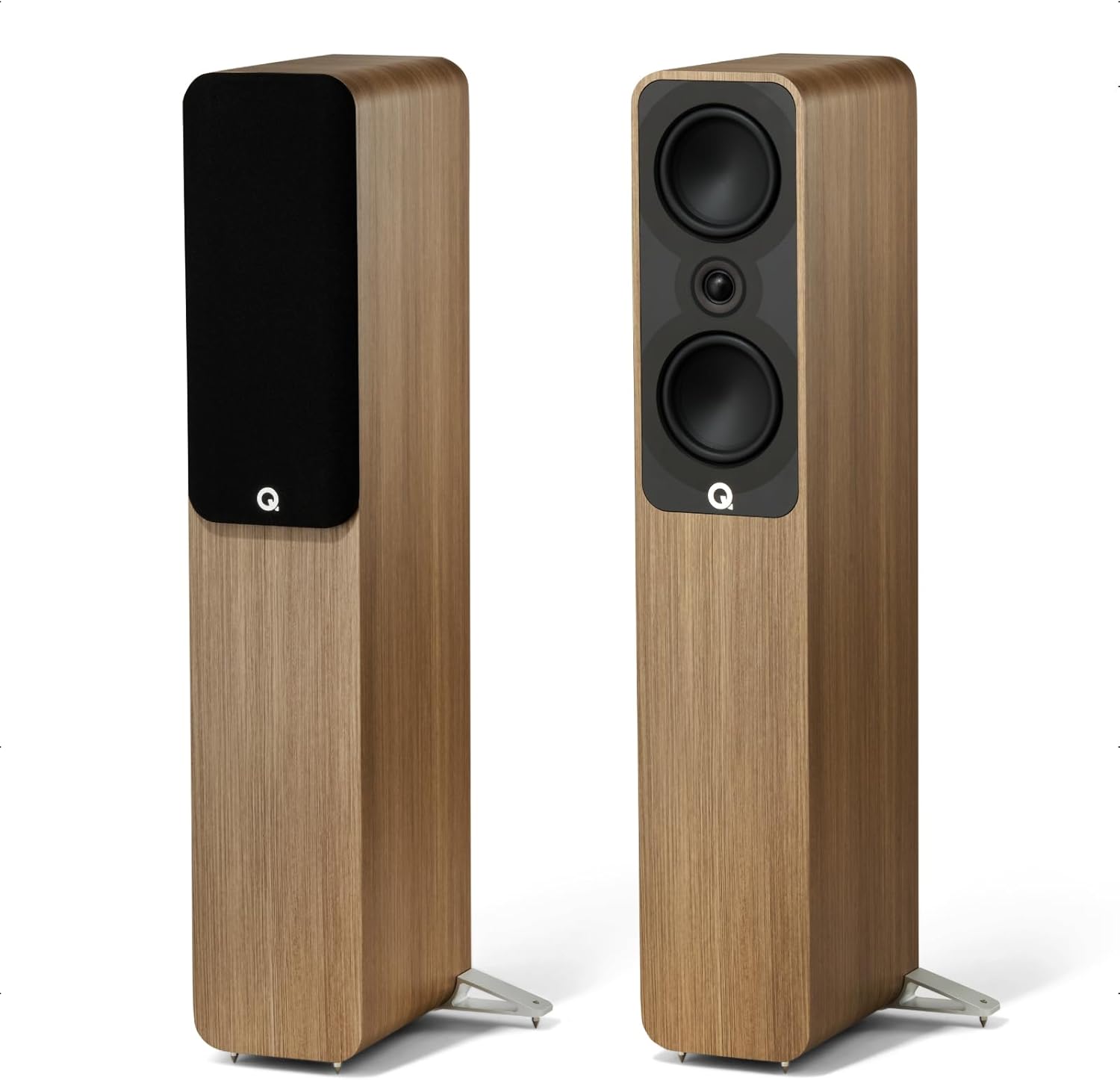

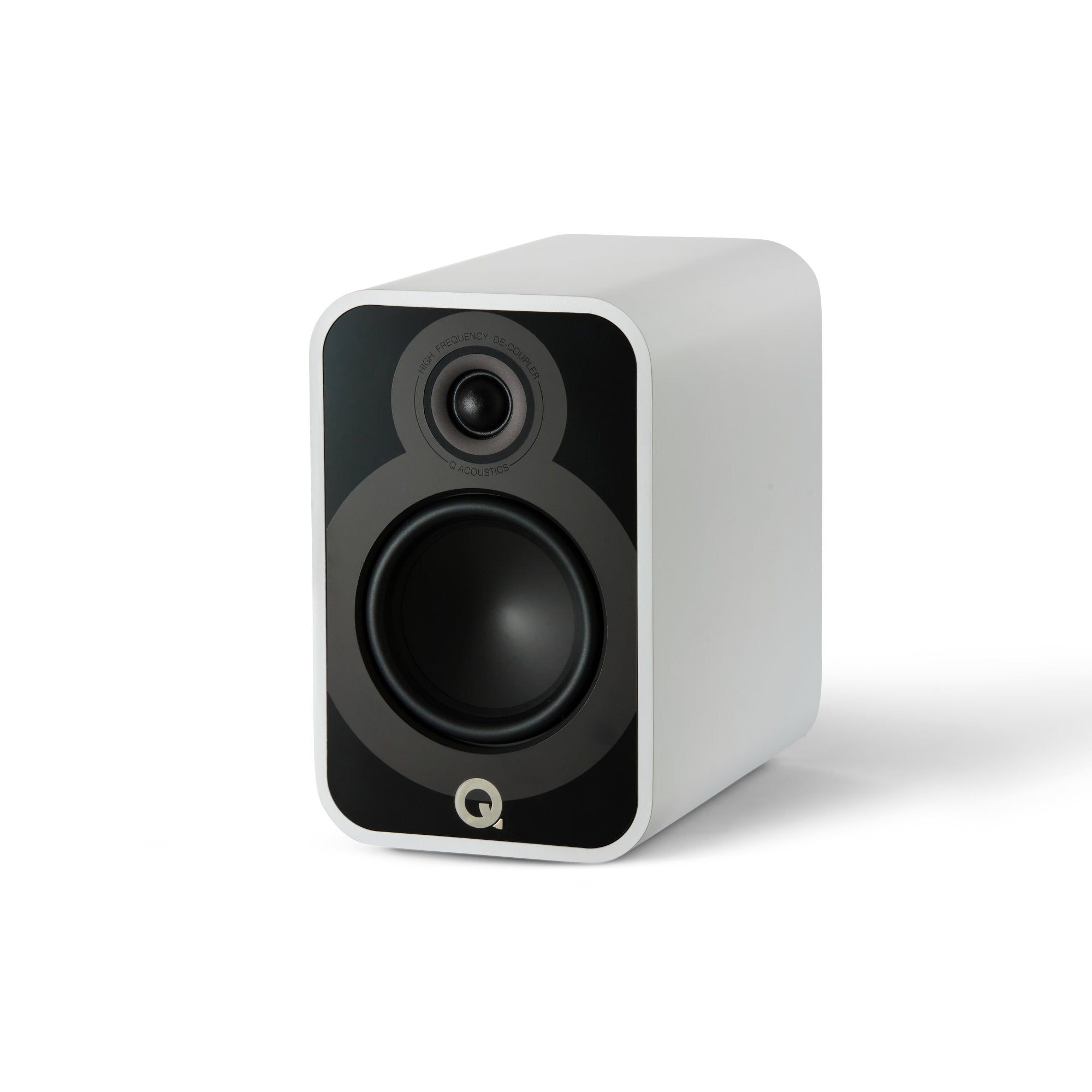

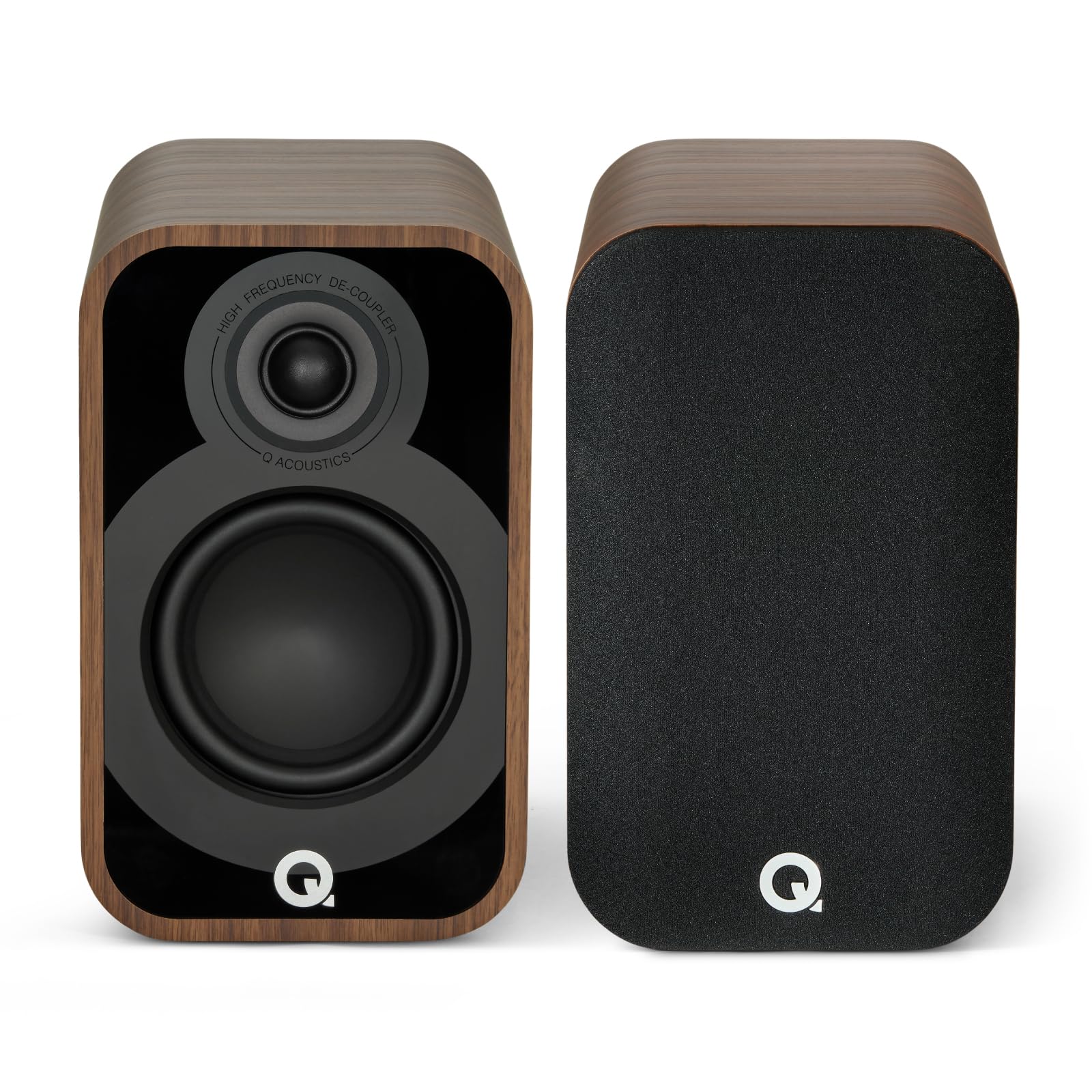

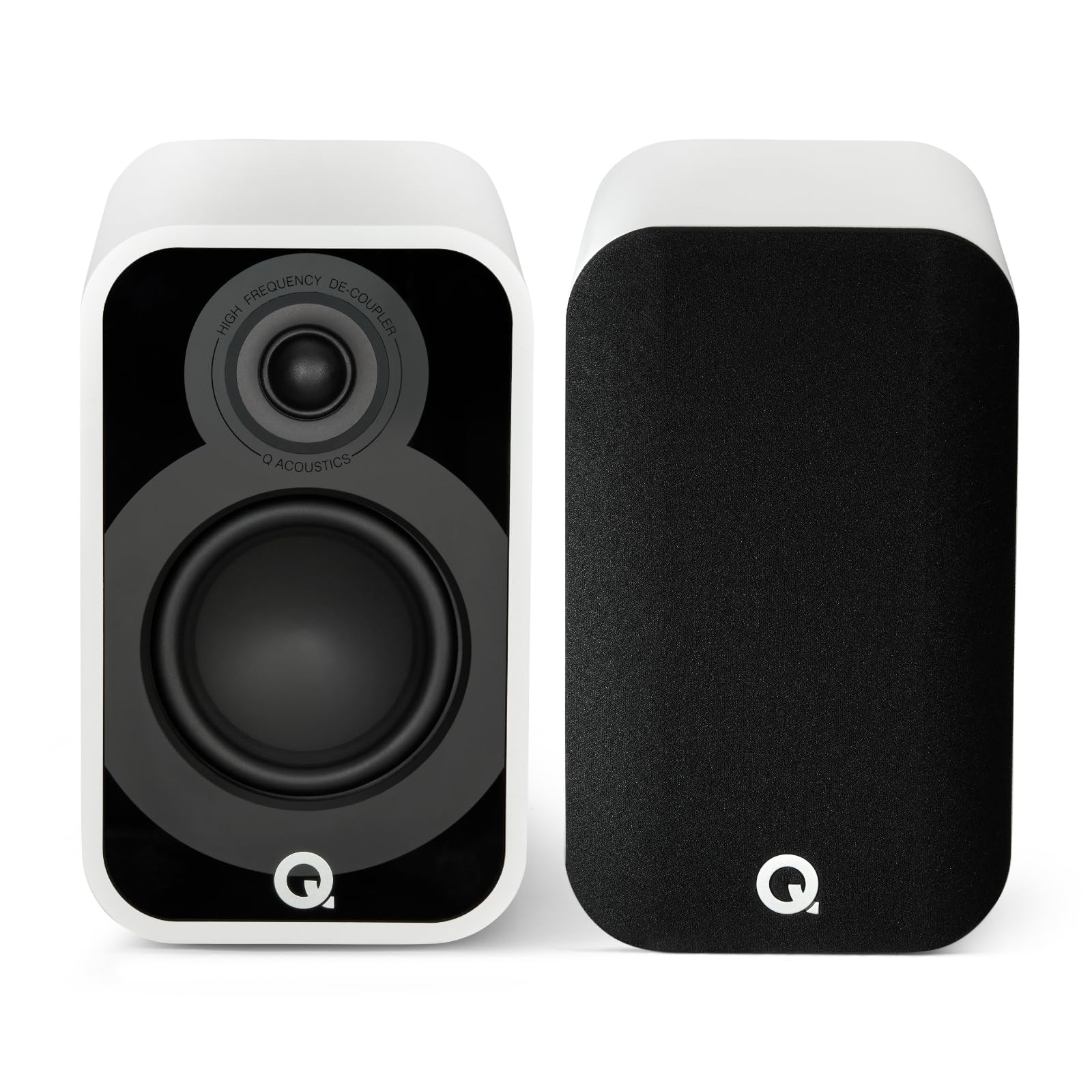

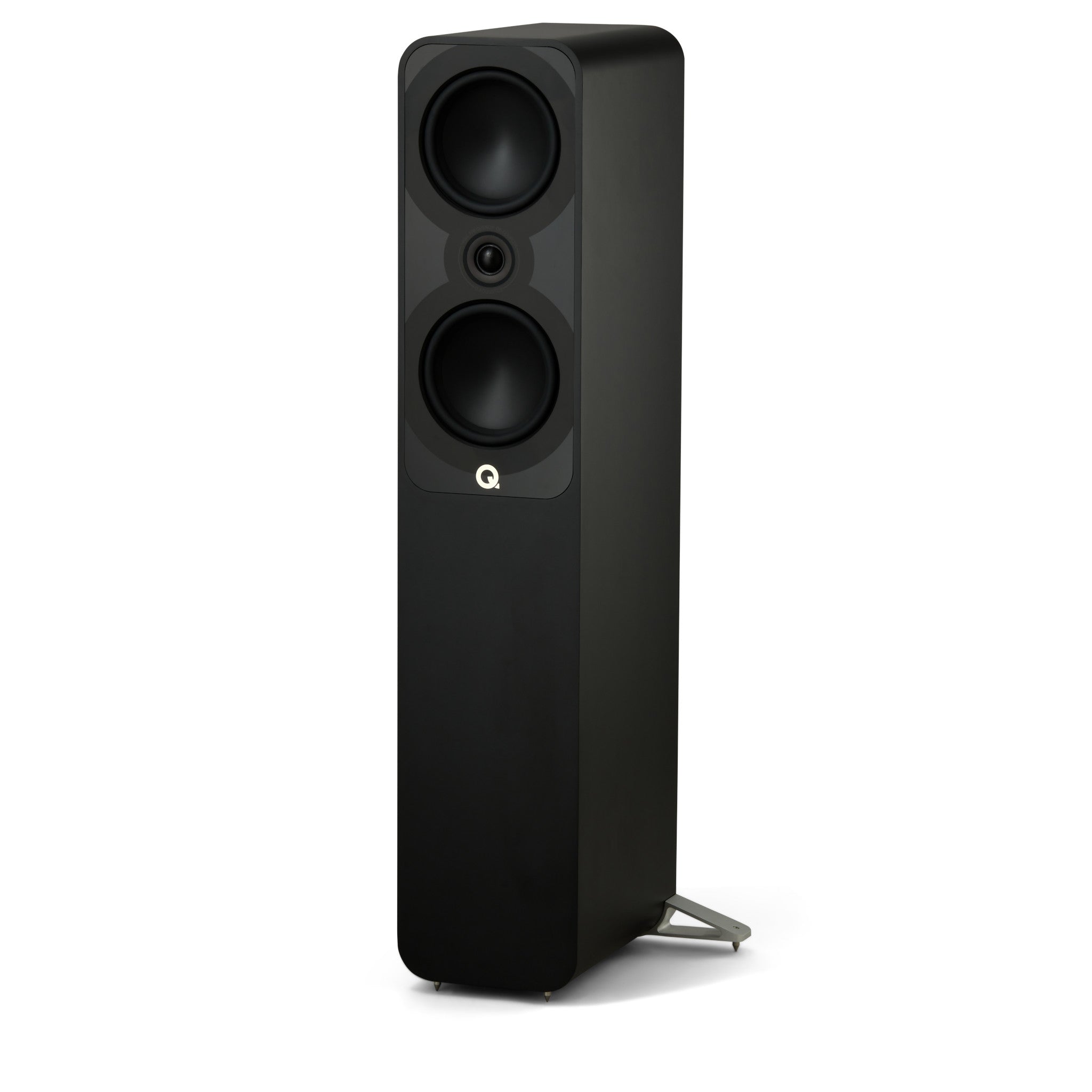

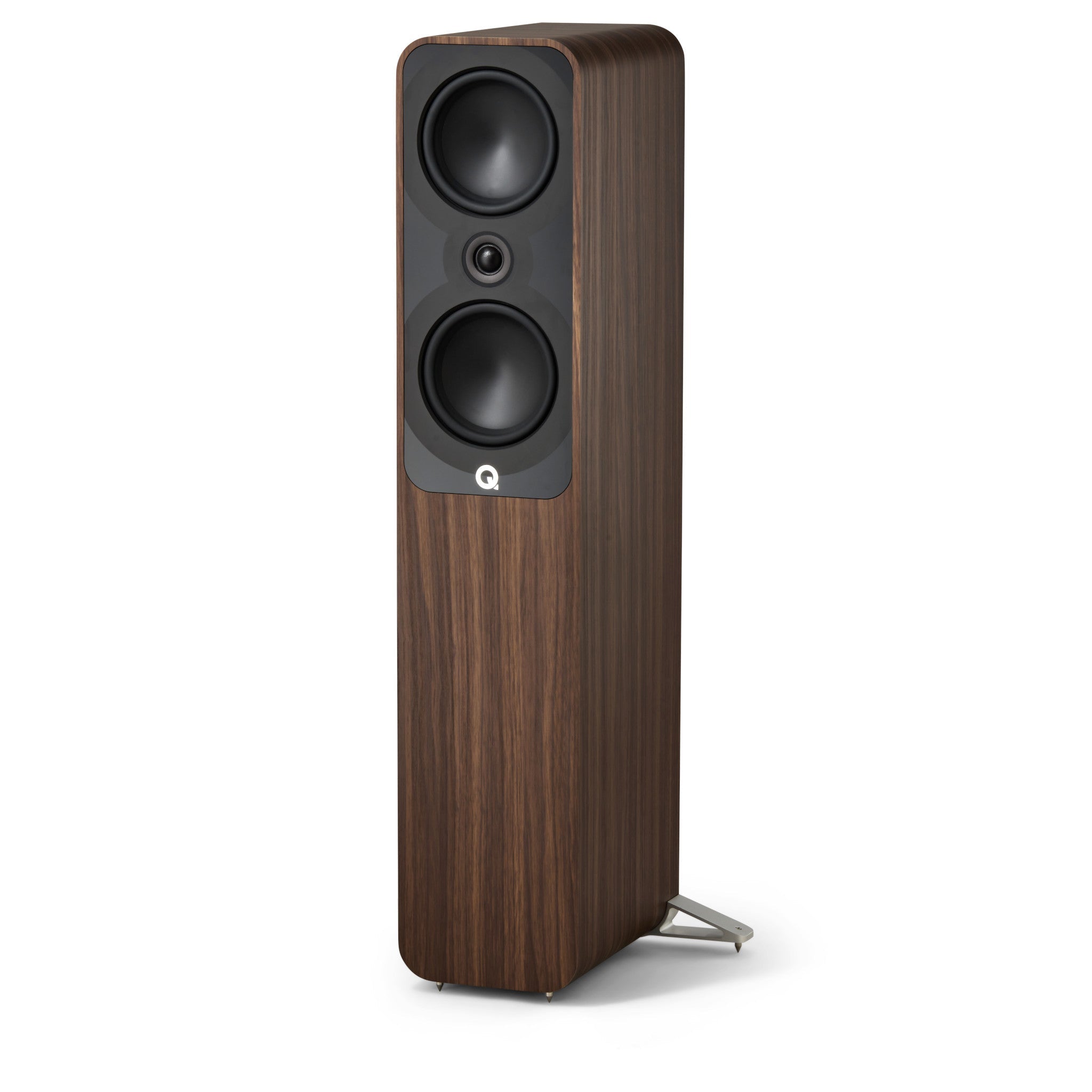

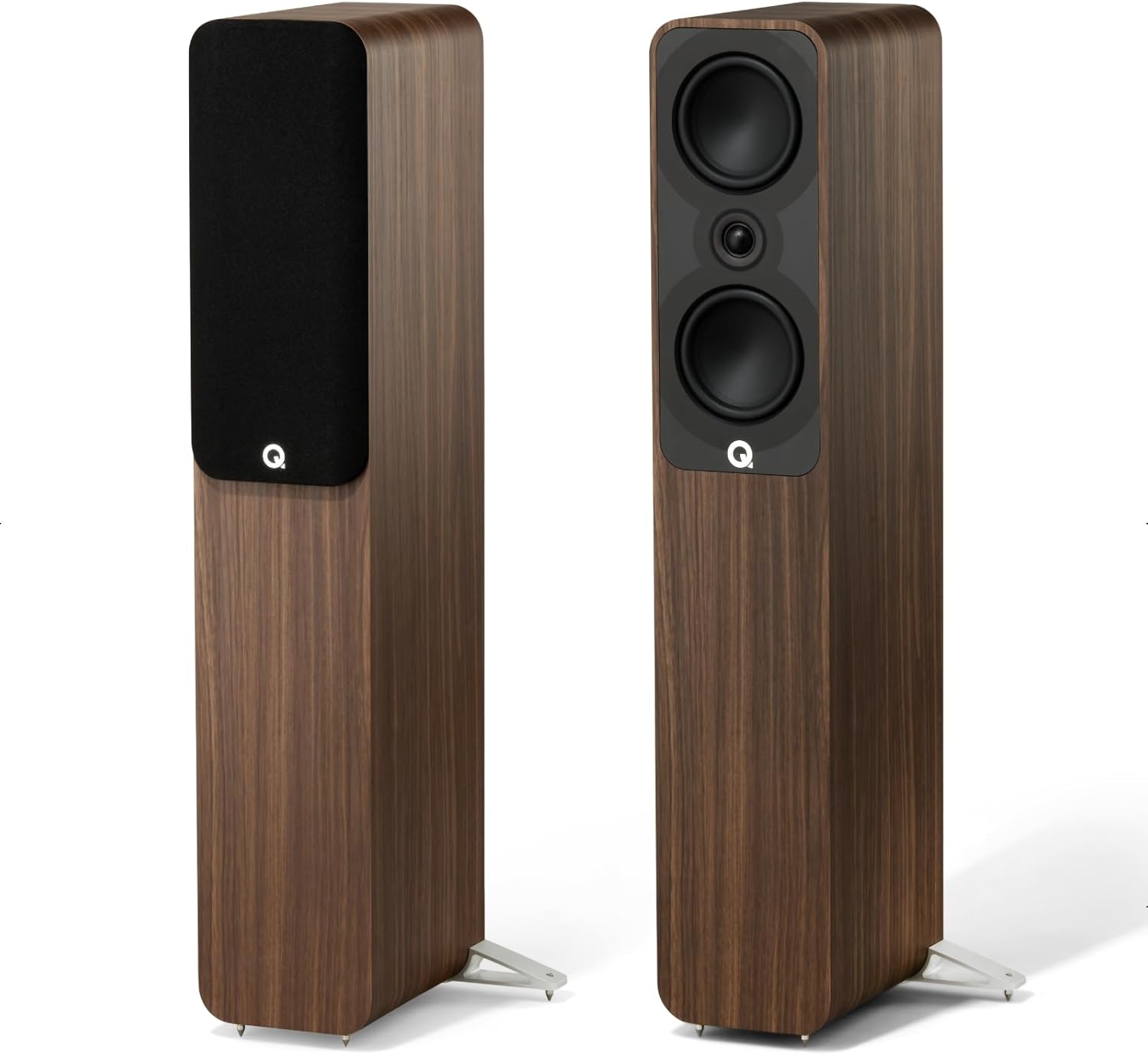

Between the acclaimed Concept models and award-winning 3000c range sits the 5000 series: 5010 bookshelf, 5020 standmount, 5040 floorstander, 5050 large floorstander and 5090 centre channel. Whether for stereo or home cinema systems, the 5000 sets new standards.

Explore the series

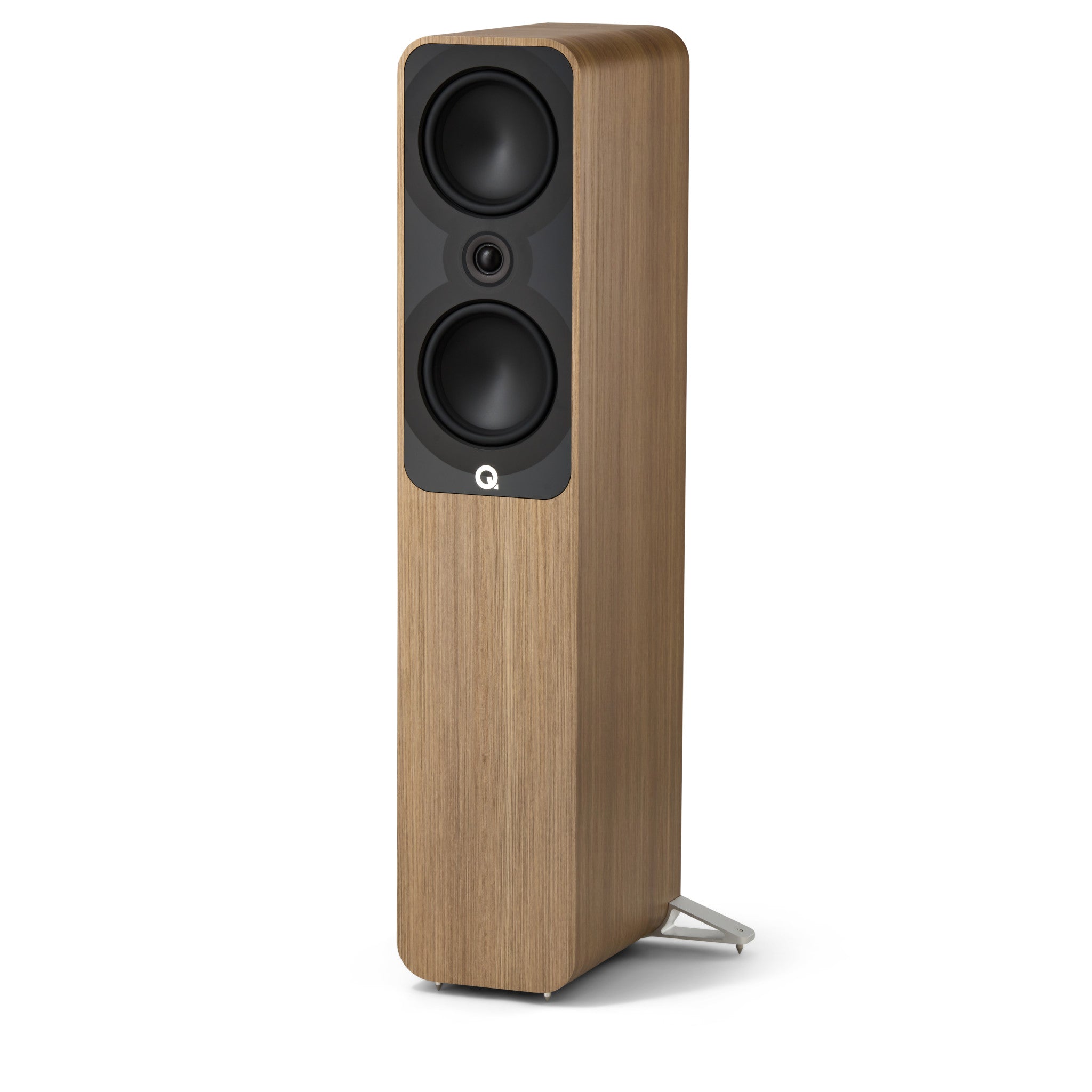

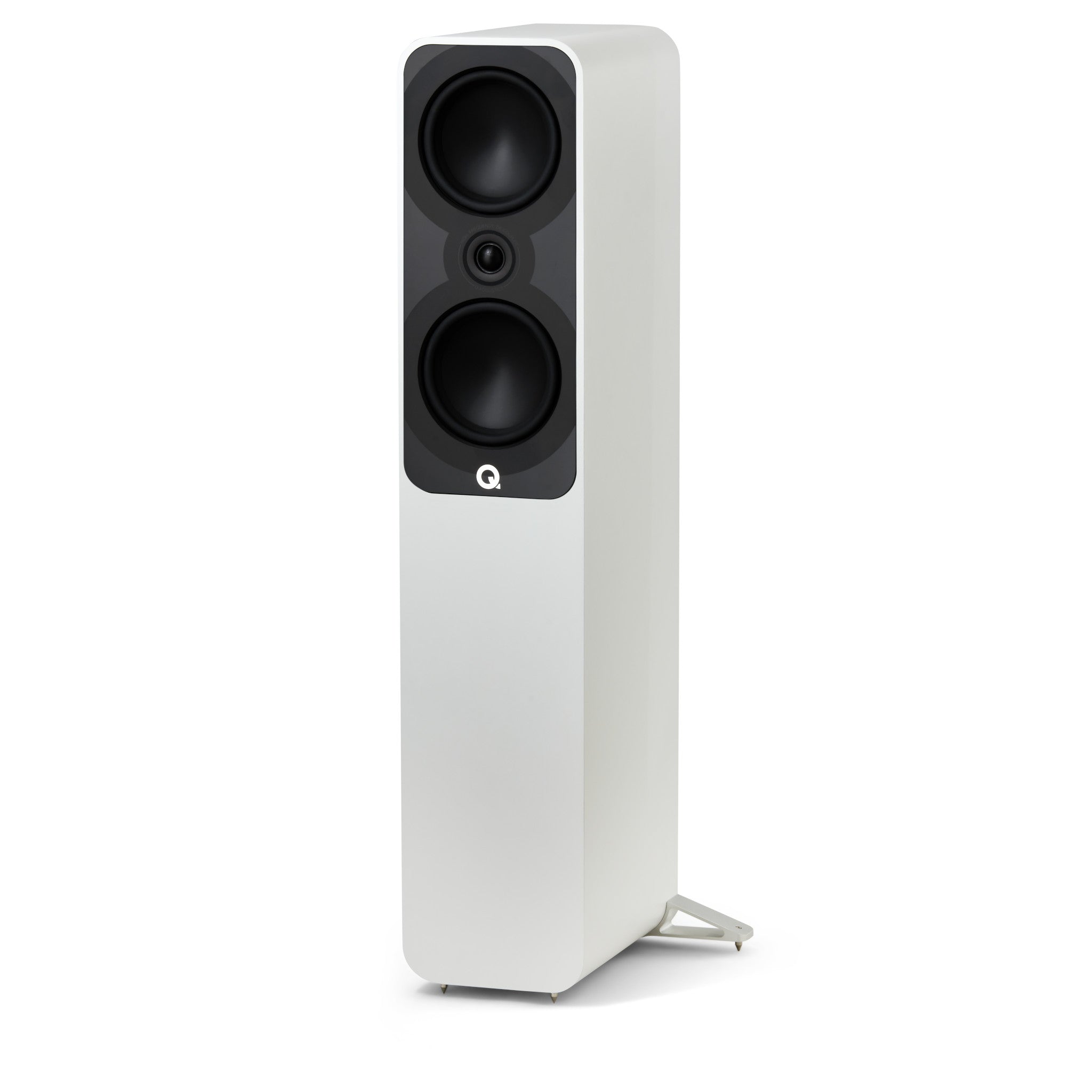

Q Acoustics 5050 pale floorstanding speaker with two woofers and central tweeter

Curve appeal

Its ground-breaking C³ ‘Continuous Curved Cone’ mid/bass driver means the 5000 series delivers audio quality beyond its class. From the precise, clean top end via the eloquent, open midrange to powerful, controlled bass, it sounds exceptional.

Explore the series
Four floorstanding speakers in black, dark wood, white and light wood finishes

Sophisticated looks

Its ground-breaking C³ ‘Continuous Curved Cone’ mid/bass driver means the 5000 series delivers audio quality beyond its class. From the precise, clean top end via the eloquent, open midrange to powerful, controlled bass, it sounds exceptional.

Explore the series

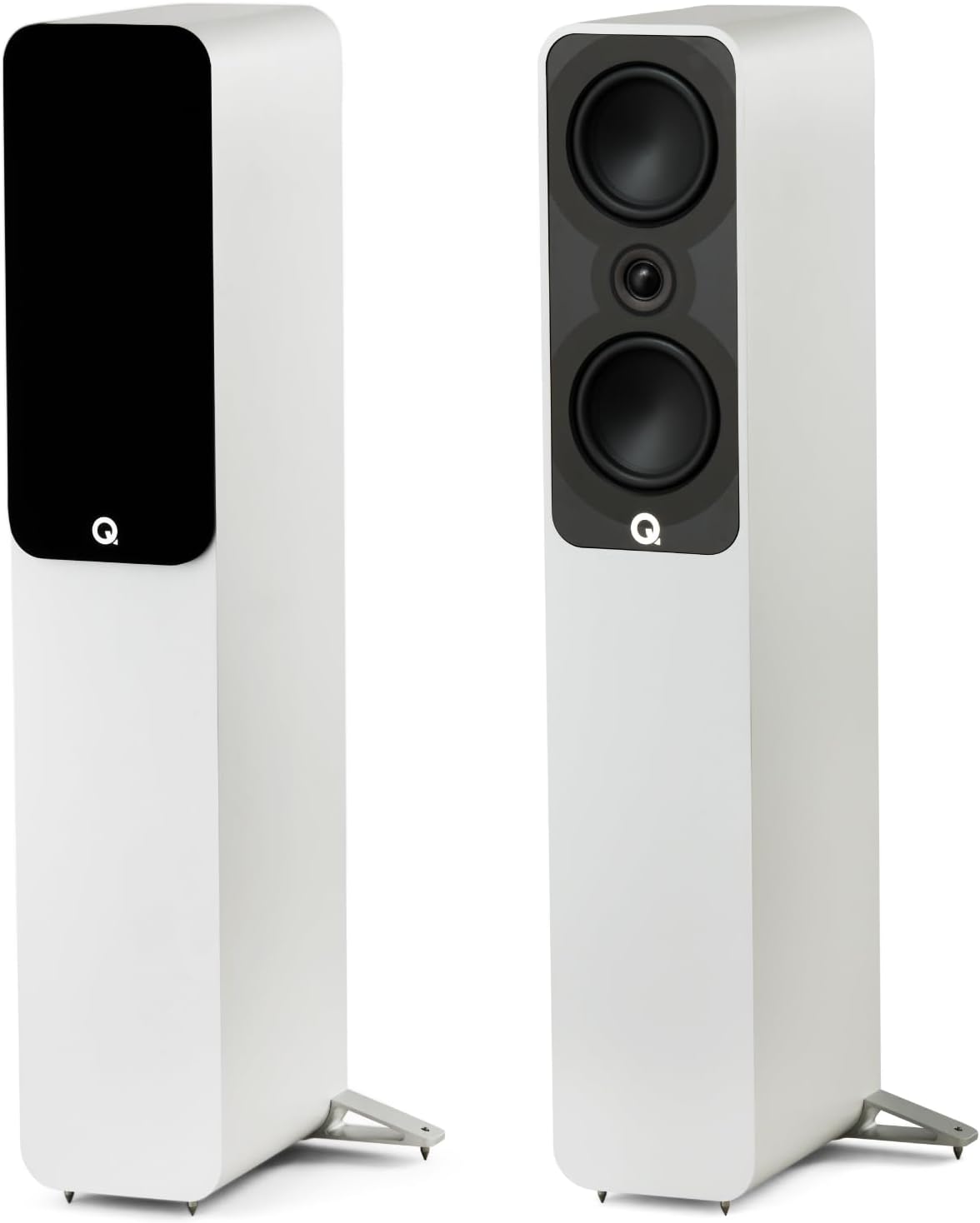

White Q Acoustics 5040 floorstanding speaker with exposed twin woofers and central tweeter beside a black-and-white fireplace, patterned by sunlight

Front row design

The baffle fronts are laminated with a layer of butyl rubber and black acrylic trim, not only to provide a damping layer to suppress vibration, but to offer an eye-catching counterpoint to the cosmetically clean front presentation uninterrupted by any fixings.

Explore the series
Cross-section diagram of a curved loudspeaker cone with red and blue profile lines

C³ Continuous Curved Cone™ driver

The advanced C³ profile combines the bass performance benefits of a traditional straight conic cone with the midrange control of a flared design. By creating a continuous curve profile, we’ve achieved excellent dispersion characteristics, well-controlled frequency response and seamless integration with the tweeter. Bass dynamics are improved, low-end control is superior, it’s more forgiving of room position too.

Cutaway diagram of a woofer showing cone, basket and internal motor assembly

Mid/bass driver design

The cone geometry of the C³ driver requires exceptional motor strength for optimal performance, so substantial magnets are coupled to the voice coils. The control exerted by the large magnets ensures superb dynamic response and headroom along with articulate bass presence. The magnets also reduce harmonic distortion, as they ensure near-saturation of the pole plate and yoke.

Cutaway diagram of a tweeter showing diaphragm and internal motor assembly

High-frequency driver design

Based on the tweeter design principle found in the Concept series, the high-frequency drive unit is hermetically sealed and mechanically isolated from the baffle to prevent internal pressure modulations from within the cabinet and from the adjacent C³ driver. The inner chamber is vented for lower distortion, and has a lower crossover point for seamless integration throughout the crossover region.

Visualization of displacement at 532Hz with and without P2P technology on a device.

P2P™ (Point to Point) bracing

Q Acoustics P2P™ (Point to Point™) bracing used throughout the 5000 series supports the parts of the enclosure that need to be stiffened making the new enclosures exceptionally rigid, improving the focus of the stereo image and giving the soundstage more accuracy than ever before.

Two false-colour floorstanding speaker cabinet diagrams

HPE™ (Helmholtz Pressure Equalizer)

The 5040 and 5050 are, like all floorstanding loudspeakers, vulnerable to internal build-up of pressure that causes unwanted standing waves and colouration. To prevent this occurring, specially designed HPE™ (Helmholtz Pressure Equaliser™) tubes are fitted inside the cabinet to nullify internal pressure and improve frequency response.
