Q SUB100
A bigger space demands bigger bass - and that’s exactly what the Q SUB100 provides. Its 10in driver and effortless performance make it the perfect low-frequency partner for our Concept loudspeakers, as well as every other medium-sized passive speaker in our line-up.
- Color:
- Satin White
Pairs well with
Ships within 1-2 business days.
30-Day Hassle-Free Returns
Warranty ranges from 2–5 years. Click here
Key Features
- Q SUB80 has exceptional bass power to cabinet size ratio.
- This subwoofer is more powerful than the previous QB 12 model.
- Digital Signal Processing (DSP) allows easy system and room integration with optimise settings for class-leading, distortion-free performance.

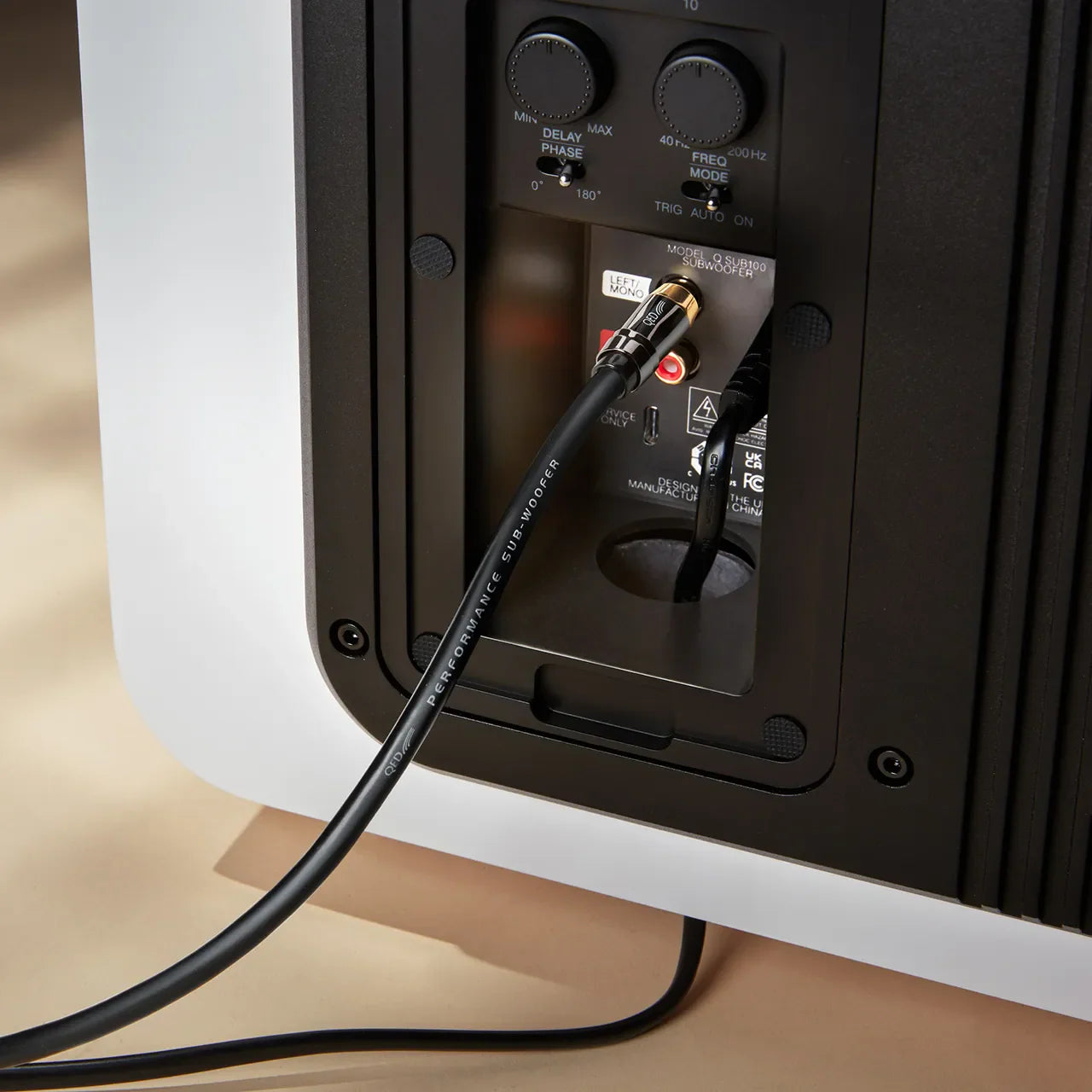

- Clever, dual phase and delay controls allow the fine-tuning of the signal alignments for flexible room placement.
- DSP identifies the input signal and automatically adjusts system gain, enhancing performance regardless of the connected source.
- A low pass filter with frequency adjustment ensures seamlessly integration with any partnering speaker system.
- A custom-designed amplifier module features four digital power amplifier stages that improves efficiency by dissipating less heat, enhances speaker control, and reduces output impedance.

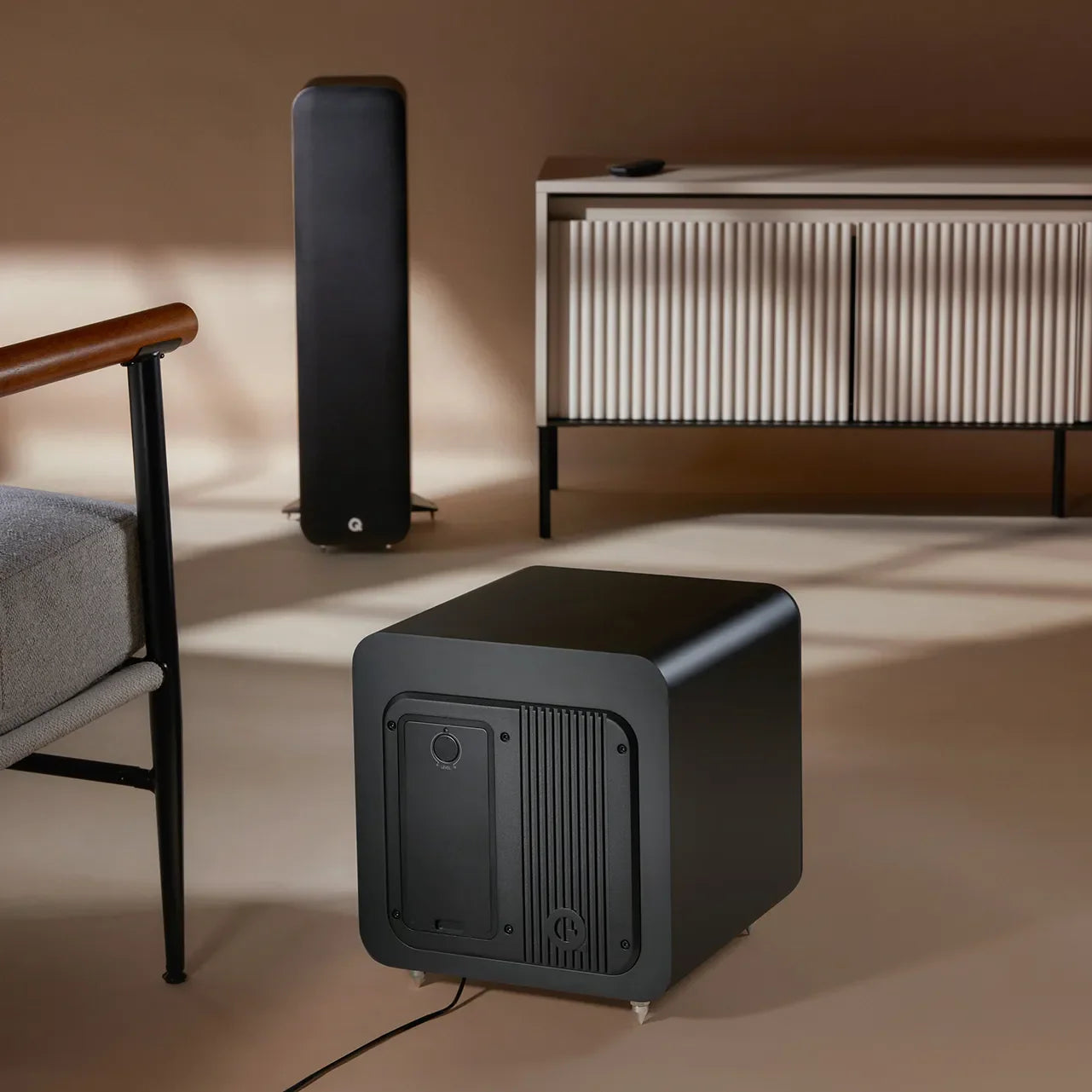

Flexible about placement
Badly positioned subwoofers can impact sonic timing and cause phase alignment issues. But Q SUB has digital signal processing, a phase inversion switch and delay adjustment to provide superb performance and smooth integration without professional installation.
Source detection
Subwoofers must work with input sources including stereo preamps, mono feeds from active speakers, and home cinema systems. Q SUB uses its processing power to identify the input signal type and level and automatically adjusts to deliver optimal performance.

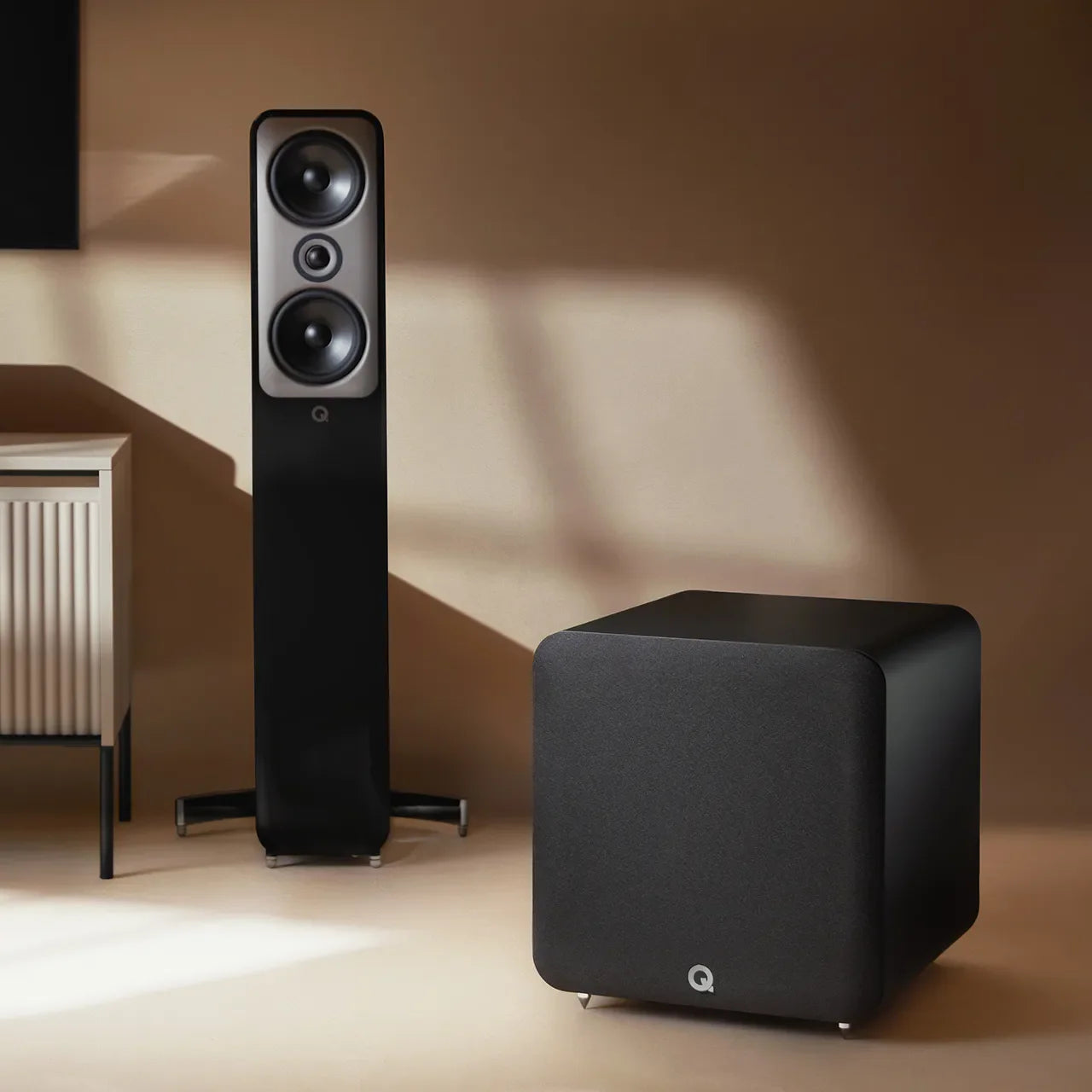

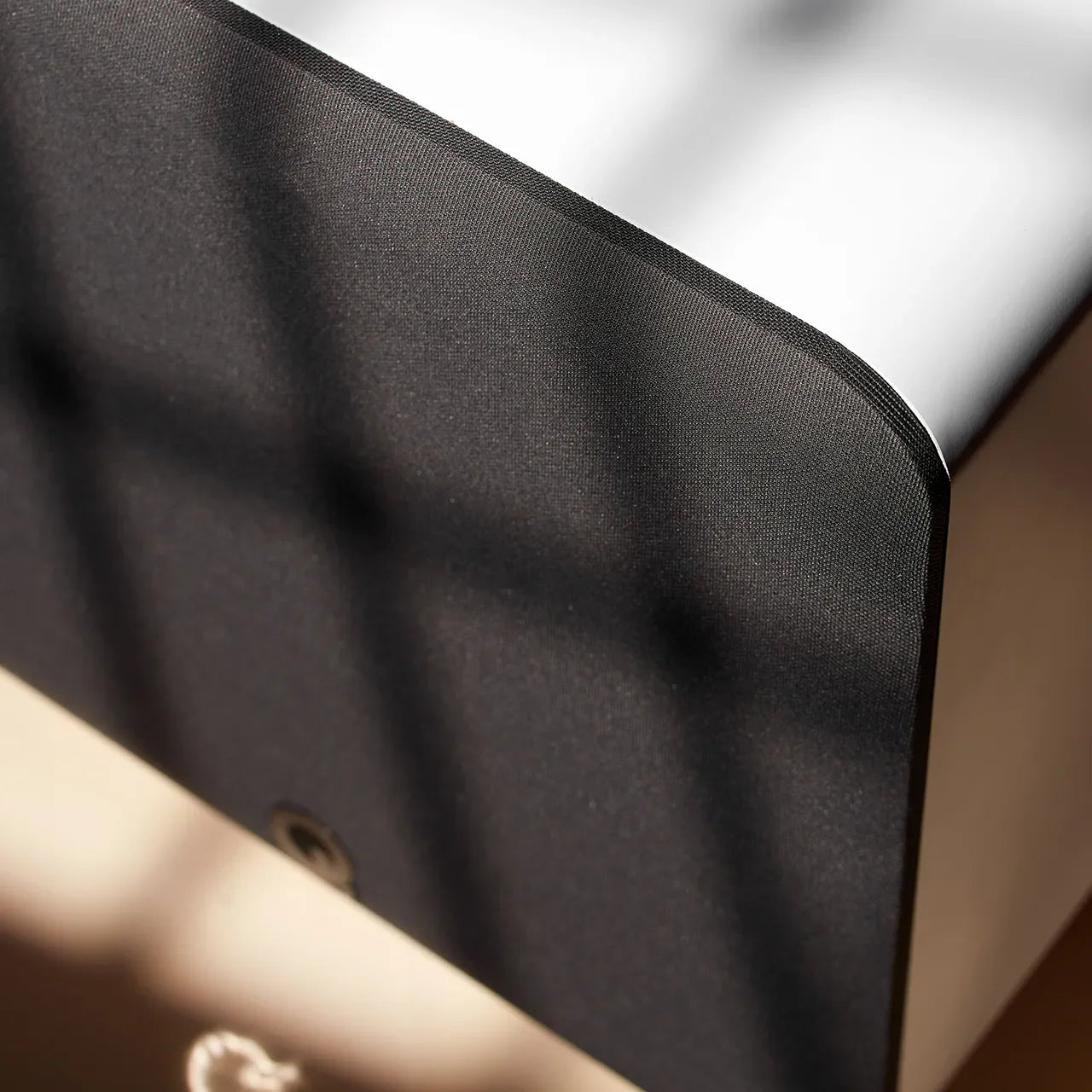

Classic finishes

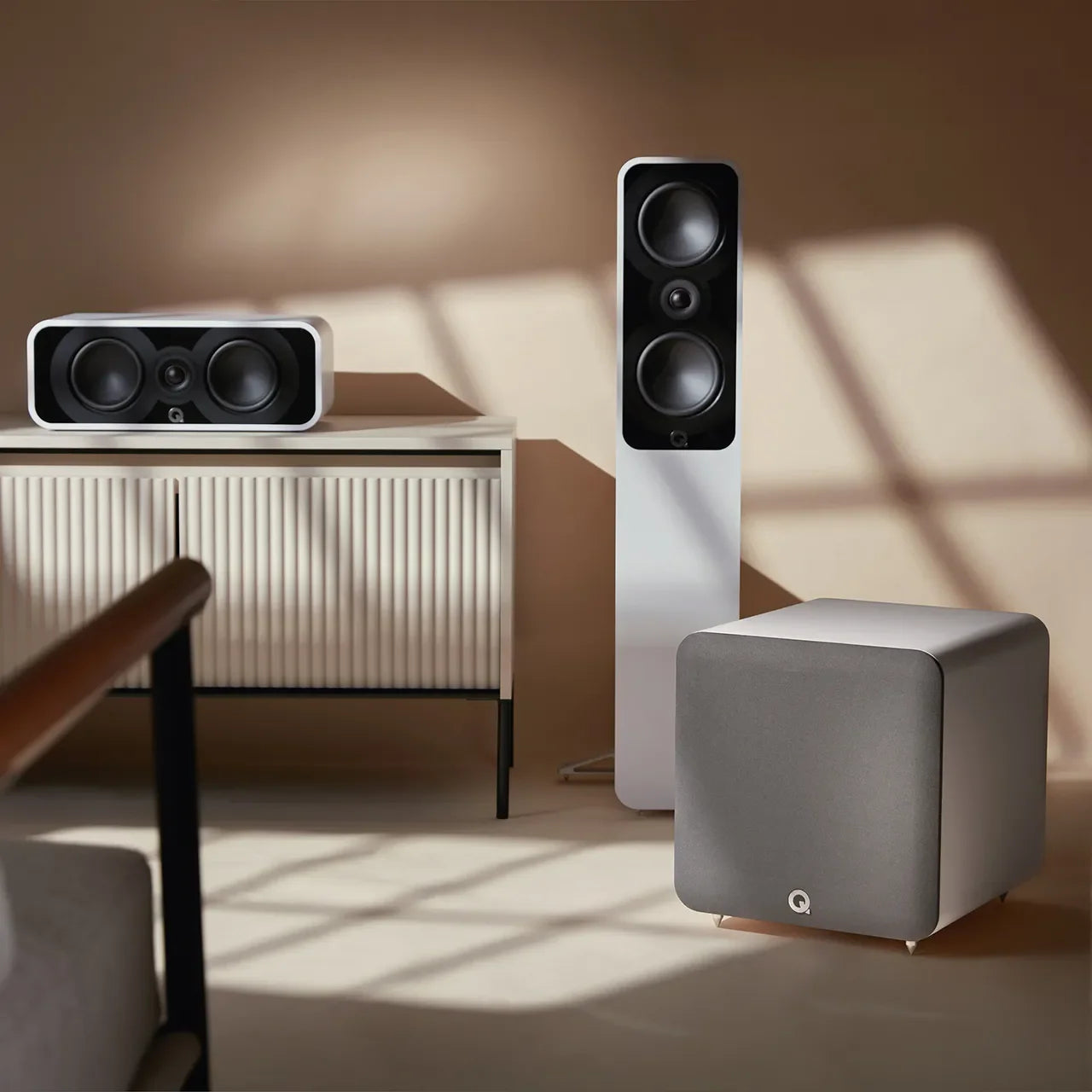

Q SUB’s minimalist clean design means it can blend discreetly into any room or proudly displayed. It arrives in two modern-yet-classic finishes: Satin Black with a black grille, or Satin White with a grey grille - joining 3060S to complete our subwoofer family.
The power to perform
The custom-designed Q SUB amplifier module includes DSP, power amp and power supply. It has four digital power amp stages in a parallel bridge-tied load arrangement, enhancing efficiency and control by reducing output impedance and heat dissipation. This configuration can deliver up to 300 watts of continuous power and 600 watts peak, with exceptional total harmonic distortion numbers of under 0.1%.
Frequency response adjustment
Subwoofers need an adjustable low-pass filter to match their upper frequency response with the lowest bass of their partnering speakers. Q SUB features a low-pass filter with frequency adjustment from 40Hz to 250Hz - this wide range ensures Q SUB will seamlessly integrate with and complement the low-frequency response of any speaker system.

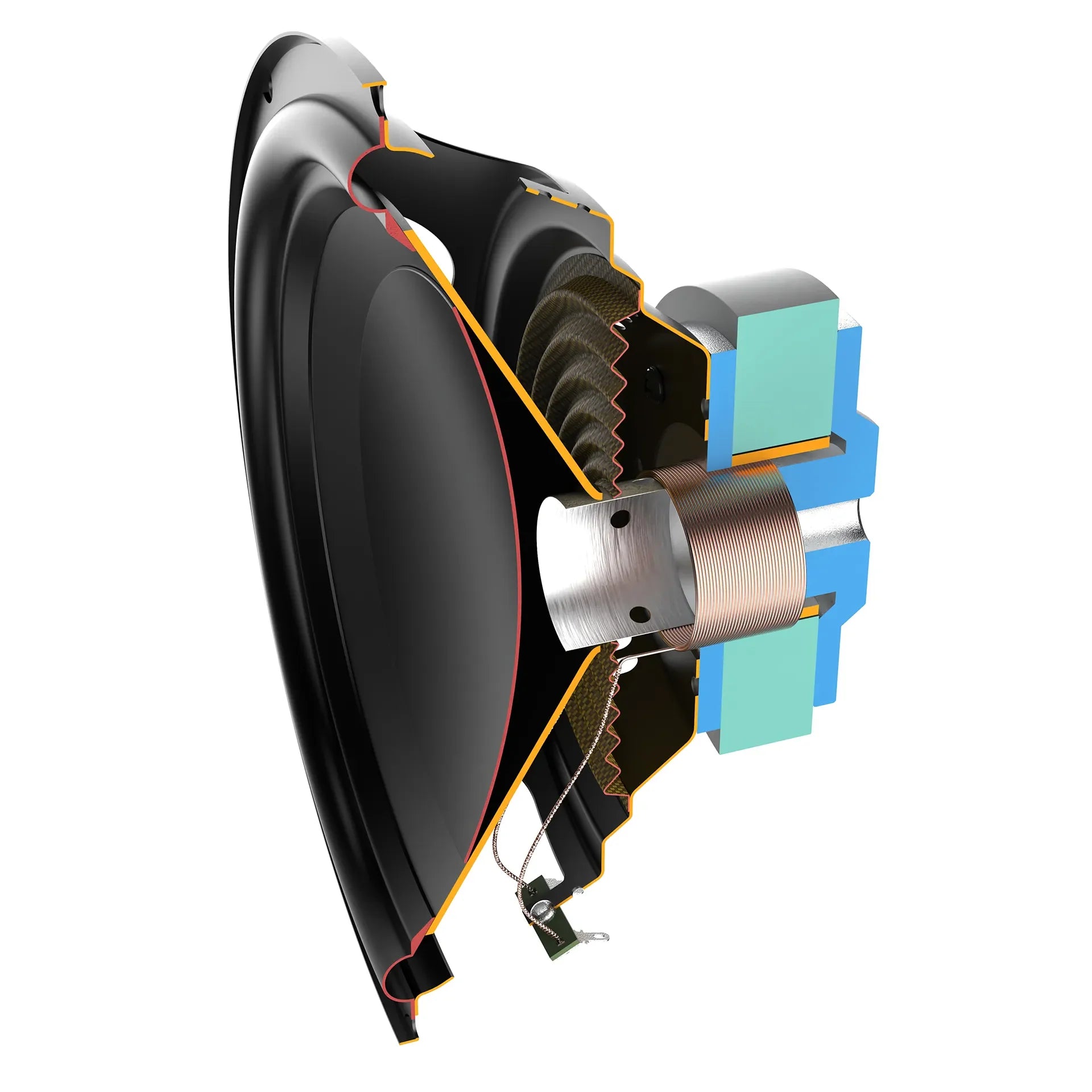

Rigorous driver design
The Q SUB drive units feature a heavy-duty steel chassis, paper cone, and rubber surround - driver diameters are 203mm for Q SUB80, 254mm for Q SUB100 and a mighty 305mm for Q SUB120. Voice coils are 38mm for SUB80 and SUB100, while SUB120 uses a 50mm version - each has an aluminium demodulation ring for reduced inductance-induced modulation distortion.

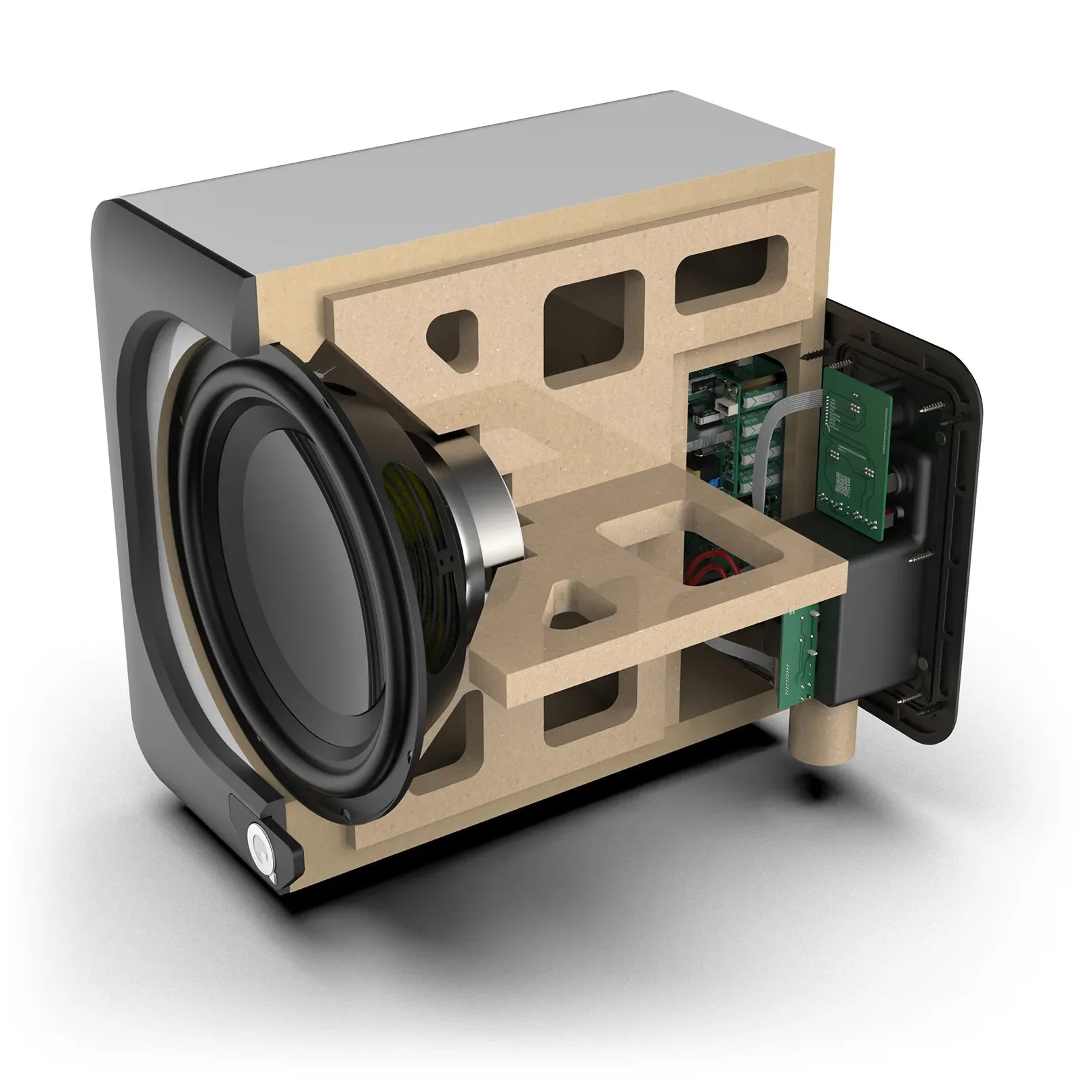

Uncompromised cabinet design
An infinite baffle, or sealed box, design delivers tight, focused bass especially when coupled with DSP for precise acoustic tuning, and placement near walls or furniture is easy as there’s no port. Q SUB cabinets use 18mm MDF with a 36mm baffle for rigidity, while internal dart bracing enhances stability and ensures optimal performance even under high internal pressure.
Product details
Overview
- Q SUB80 has exceptional bass power to cabinet size ratio.
- This subwoofer is more powerful than the previous QB 12 model.
- Digital Signal Processing (DSP) allows easy system and room integration with optimise settings for class-leading, distortion-free performance.
- Clever, dual phase and delay controls allow the fine-tuning of the signal alignments for flexible room placement.
- DSP identifies the input signal and automatically adjusts system gain, enhancing performance regardless of the connected source.
- A low pass filter with frequency adjustment ensures seamlessly integration with any partnering speaker system.
- A custom-designed amplifier module features four digital power amplifier stages that improves efficiency by dissipating less heat, enhances speaker control, and reduces output impedance.
Specification
Enclosure type: Infinite baffle
Bass unit diameter: 203 mm (8 in)
Effective volume: 13.9 litres
Max SPL @ 1 m: 107 dB
Frequency response (-6dB): 36 Hz – 250 Hz
Low pass crossover range: 50 Hz – 250 Hz
Peak amplifier power: 400 W
Continuous amplifier power: 200 W
THD @ rated power: 0.09%
Input sensitivity (max gain): 300 mv rms
Maximum input level: 2.1 V rms
Input impedance: 20 kΩ
Noise floor (A wtd): 50 μV
Dimensions (HxWxD): 315 x 315 x 347 mm (12.4 x 12.4 x 13.6 in)
Weight (per loudspeaker): 15 kg (33 lbs)
